Advantages of the 3000-meter running system

1. 100% no omission (completely solving the problem of omission in the running system);

2. Automatic timing, circle counting, ranking, and automatic calculation of assessment scores based on the physical training outline.

3. Voice announcement of name, time and number of turns; The full name of camera anti-cheating is video surveillance. Anti-cheating automatic check-in point monitoring for taking a shortcut;

4. The large screen displays the name, time taken and number of laps. Total time display;

5. Lightweight equipment and easy installation: The entire sensor carpet is available in lengths of 5 meters, 7 meters, and 9 meters. A 7-meter-long carpet weighs only a few kilograms, can be rolled up, is portable, and easy to install.

6. Grades are automatically exported to excel

Parameter:

The components of the 3000-meter running system: sensor timing host, sensor timing carpet, anti-cheating (preventing taking a shortcut) intermediate sensor point, anti-cheating camera at the finish line, timing wristband, voice broadcast speaker, chip binder, starting gun, LED large screen, large screen stand, software system CD, storage aviation case, laptop.

Intelligent Running Management System

Real-time display of information such as the name, time, remaining laps and photo of the assessor. The software system can rate scores based on the physical training syllabus, and the results can be exported to EXCEL. The software system also has a wireless transmission expansion function (the assessment results can be wirelessly transmitted to the military physical fitness training assessment system). During the assessment process or after the assessment, the software system can display the number of times and status (abnormal or normal) that the personnel pass through each anti-cheating intermediate sensing point. Each assessment by the software system can set the number of anti-cheating intermediate sensing points according to actual needs. The software system can import personnel information through EXCEL. The software offers functions such as data management, starting competitions, processing and saving, as well as result analysis. All kinds of information in the software are easy to understand and browse, facilitating user operation. The software supports Chinese display and is compatible with the Windows operating system. Functionality: It can add competitions, add or delete athletes, obtain athlete information and record results, save competition results, view historical competition results and conduct ranking analysis, and exit the software.

工作电压：9-12V

工作温度：适合室外任何气候环境，强光下确保测试成绩准确，不丢失测试人员成绩，分度值：s:0.1。

Starter

Dimensions: 26cm×20cm×11cm, weight: 1.9kg, cold white non-heat-absorbing material; The starter can issue commands remotely at a distance of no less than 400 meters. It comes with its own power supply and uses a button to issue commands.

Power bank

设备自带移动电源，电池续航时间不小于30小时，容量：18000/23400/28800mAh，输入：DC12.6V/1A，输出：DC:12V/3A 9V/1A，USB：5V/2A，重量：≤500g；可供不少于100人同时考核；并配支架便于将移动电源稳妥的固定在三脚架上。

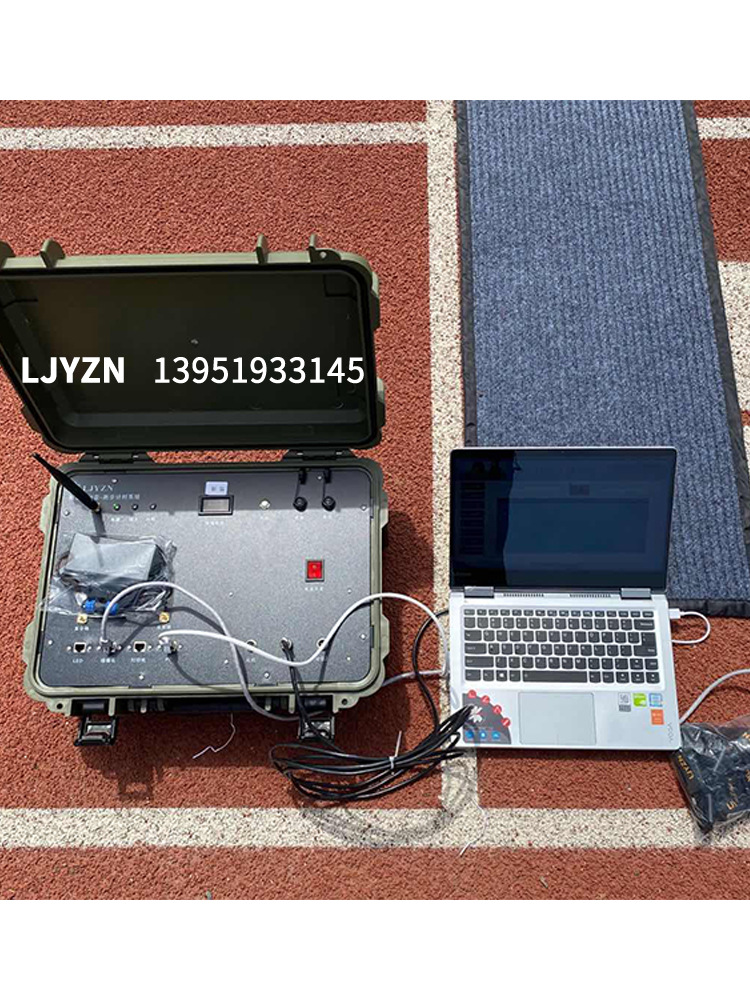

Host

The functional area of the host panel has an antenna, an LED, a camera, a printer, and an RJ45 interface for an external PC (with a metal-tipped network cable). The main panel has power, card reading and slave indicator lights. The induction host is equipped with a battery voltage display screen, a red power switch and a start button. The mainframe panel is equipped with a starting gun and connection ports for the main system.

The overall weight of the induction timing host (including battery) is 6.6kg. The overall dimensions of the host are 49cm in length, 36cm in width and 22cm in height. The main unit is military green and the function panel is black (non-reflective material). The signal blanket is connected to the main unit operation box with a push-type mechanism switch, which enhances the stability of equipment storage. The power and battery sockets of the operation box are protected by rotating inserts.

Cloth signal blanket

The dimensions are 9m*0.45m±0.1m. It features black edge wrapping to enhance its service life. The overall weight is 6kg. The entire carpet can be rolled up, facilitating quick unfolding and storage.
