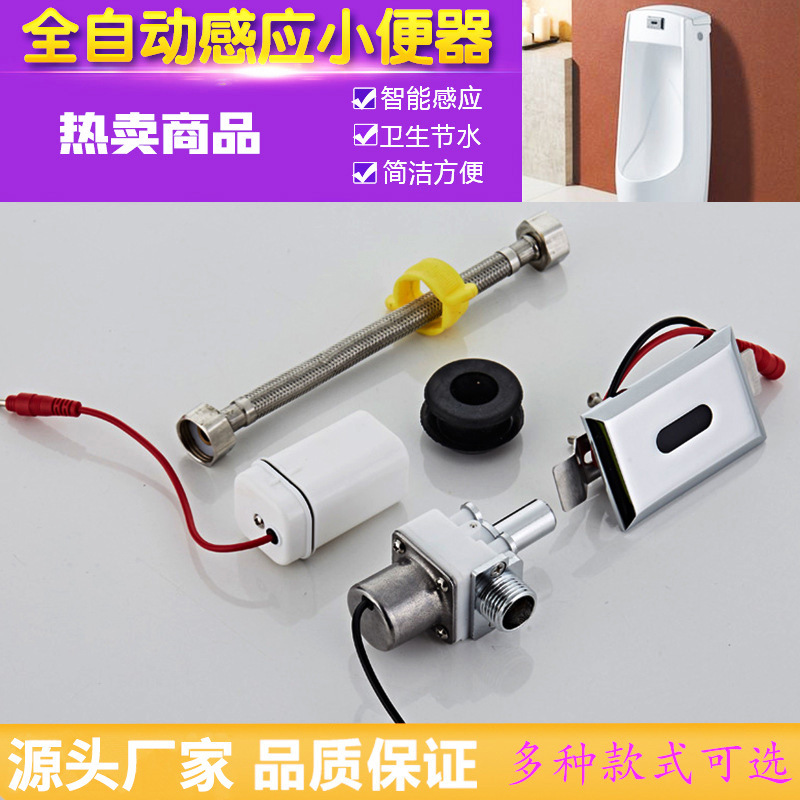

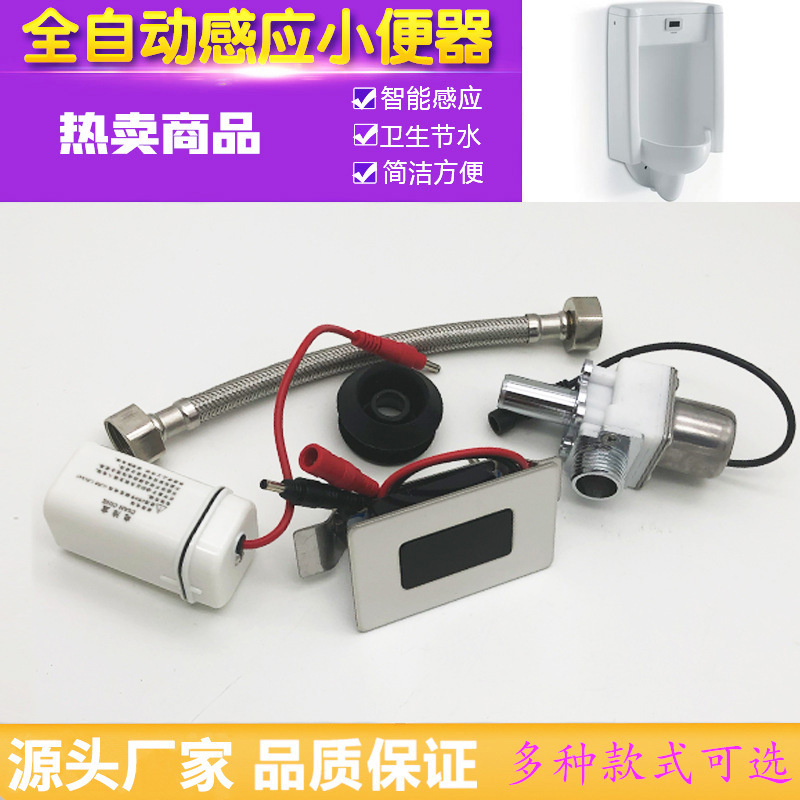

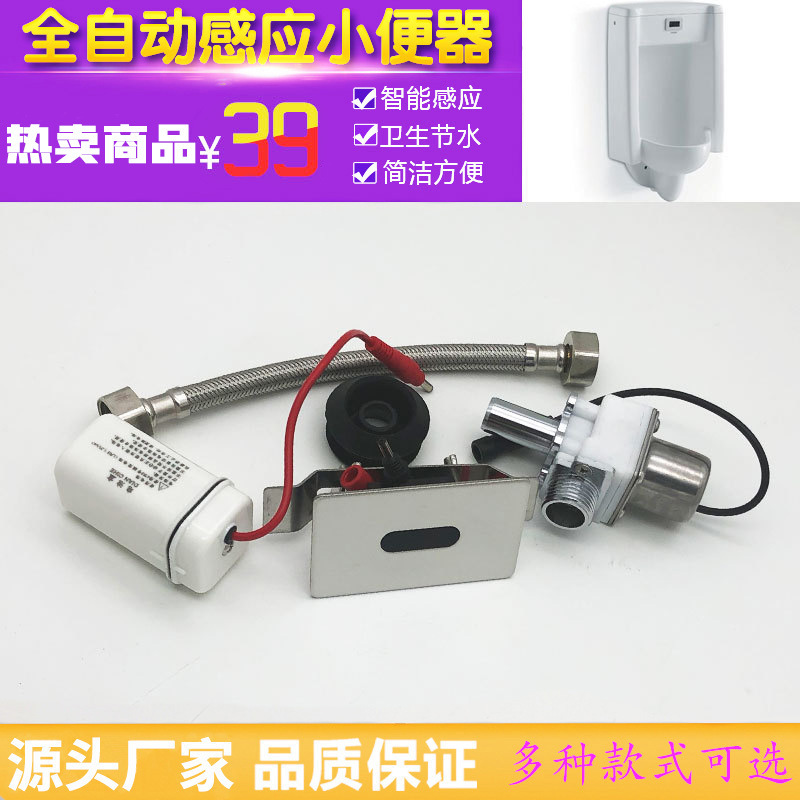

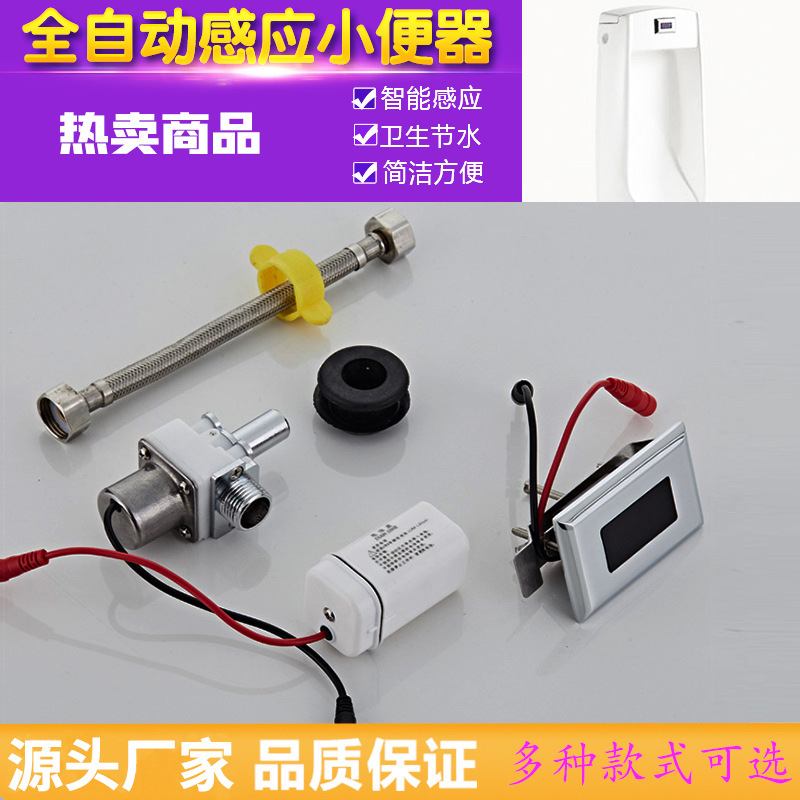

Manufacturer wholesale sensor urinals, integrated inset urinals, and infrared automatic sensor flushing devices
Still deciding? Take a sample and try it out. >> Get sample
Product Information
Sort: spot goods
Place of Origin: China
Brand: Home decoration building materials
Material: Home decoration building materials
Packing QTY: 208PCS/CTN
MEAS.: 49cm * 36cm * 22cm
CBM: 0.038808CBM
G.W.: 101.38KGs
N.W.: 100.88KGs
Packing List: 777723
Descriptions
| Suggested retail price | ￥200.00 | Brand | HRUISI/ Hengruisi | Material | copper |
| Flushing control mode | Automatic sensing type | Installation method | "Embedding | Model | 8301X-D |
| place of origin | Wenzhou, Zhejiang | Specification |
Project payment, Project payment 1, project payment plus adjustment Project payment plus adjustment 2, copper valve, copper valve 3 Adjust the copper valve, adjust copper valve 4, adjust the large copper valve 调节大copper阀 5,加帽copper阀款,加帽copper阀款 6, Double-wire copper valve model, double-wire copper valve model 7 |
Function Description
1. Intelligent water conservation: It intelligently selects single and dual-stage flushing methods. The sensor intelligently controls the flushing based on the frequency of use, effectively avoiding water waste. (When used frequently, single-stage flushing is performed; when used less frequently, dual-stage flushing is carried out, with 1 stage flushing lasting 2 seconds and 2 stages flushing lasting 4 seconds.)
2. Convenient and hygienic: The water switch is fully automatically completed by the sensor, ensuring thorough flushing without leaving any odor, effectively preventing cross-infection of bacteria
3. Automatic distance adjustment: The machine control circuit is designed with an ultra-miniature structure and is controlled by a microcomputer. It automatically adjusts the sensing range according to the working environment without the need for manual debugging
4. Intelligent anti-odor: When the urinal is not in use for a long time, the flushing valve will automatically flush once every 24 hours to prevent the water in the trap from drying up and causing the odor to spread back.
5. Easy maintenance: It is equipped with a water volume regulating valve and a filter screen, allowing non-professionals to easily adjust the water volume and clean the filter screen.
6. Installation features: Exposed wall installation design, suitable for various renovation projects.
7. Intelligent power saving: Controlled by low-power chips, it features an inbuilt power-saving working mode, ultra-low energy consumption, and more effective power saving (DC type products use 4 AA alkaline batteries, with A static current of ≤60μA).
8. Weak current prompt: If the battery voltage is lower than 4.6V, the red indicator light will flash, indicating that the battery needs to be replaced
9. Power supply options: Three power supply modes are available for selection: AC, DC, and AC/DC dual-purpose. The AC/DC dual-purpose mode can achieve automatic soft switching
| Power supply | DC（6V） |
| Static power consumption | <60uA |
| Battery service life | 1.5 years (using the frequency meter 200 times a day) |
| Sensing distance | The remote control is adjustable from 30 to 100cm, and the factory setting is 70cm |
| Inlet pipe diameter | G1/2″(DN15) |
| Applicable water pressure | 0.05Mpa～0.8Mpa |
| Rated flow | 9-15L/ working cycle (water pressure 0.3Mpa) |
| Applicable temperature | 1～70℃ |
| Environmental humidity | Below 95% RH |
