Product parameters:

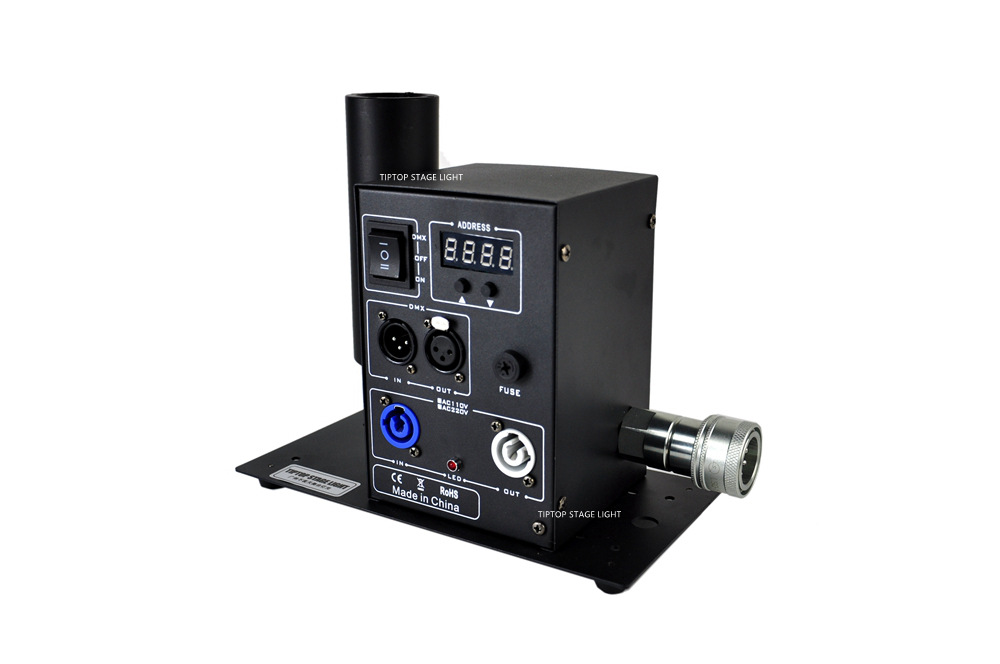

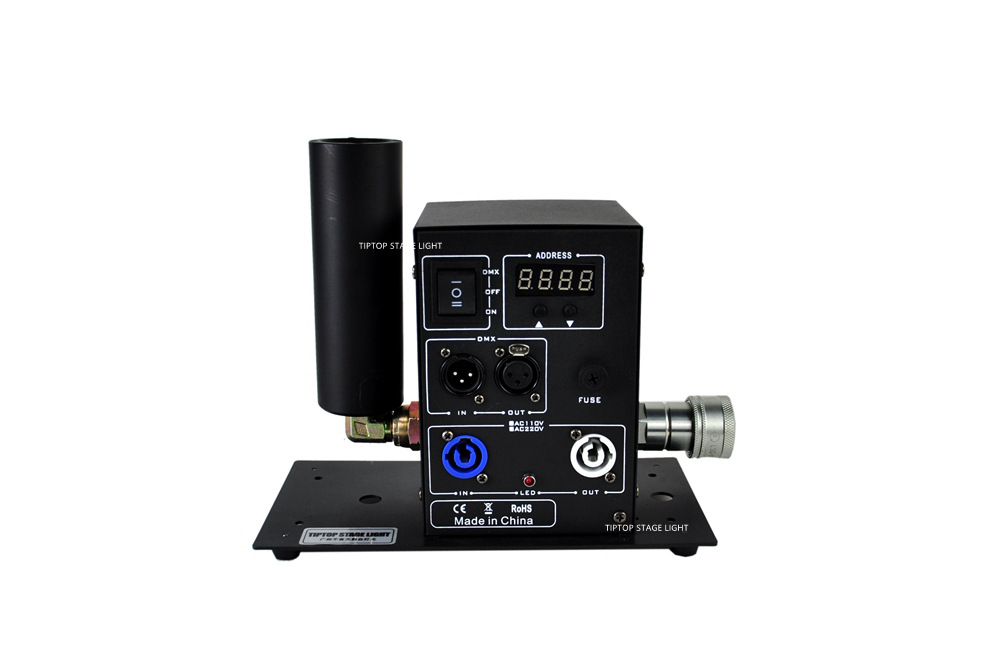

Product Name: Single-tube LCD Display Carbon Dioxide Gas Column Machine

Model: TP-T25

电压: 110V/220  （单电压！）

Frequency :50/60Hz

Power: 200W

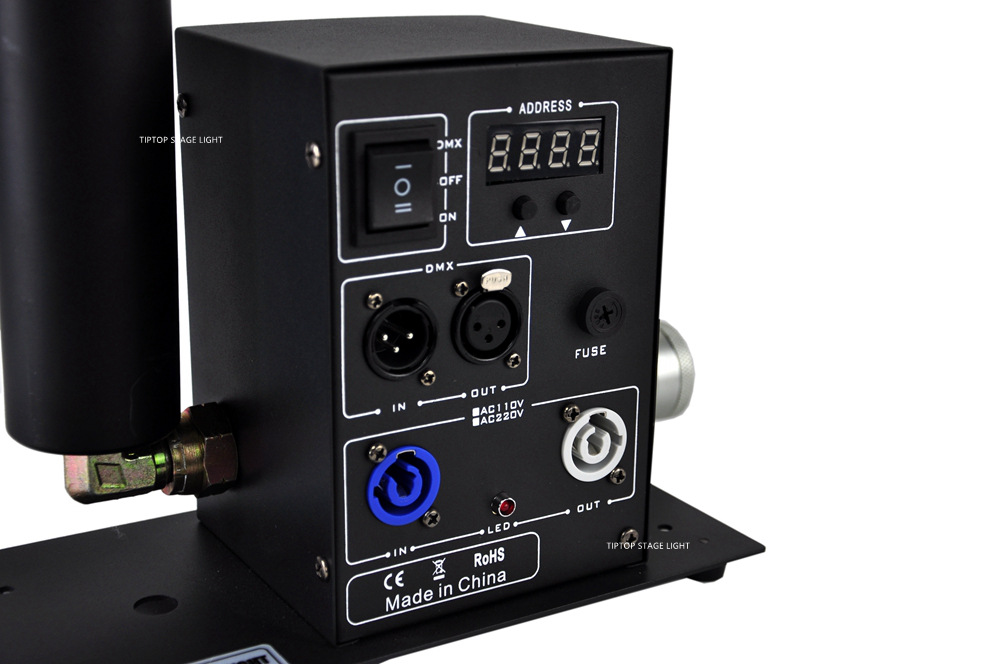

Mode: DMX512+ Manual + Remote control

Channel: 1

Waterproof rating: IP20

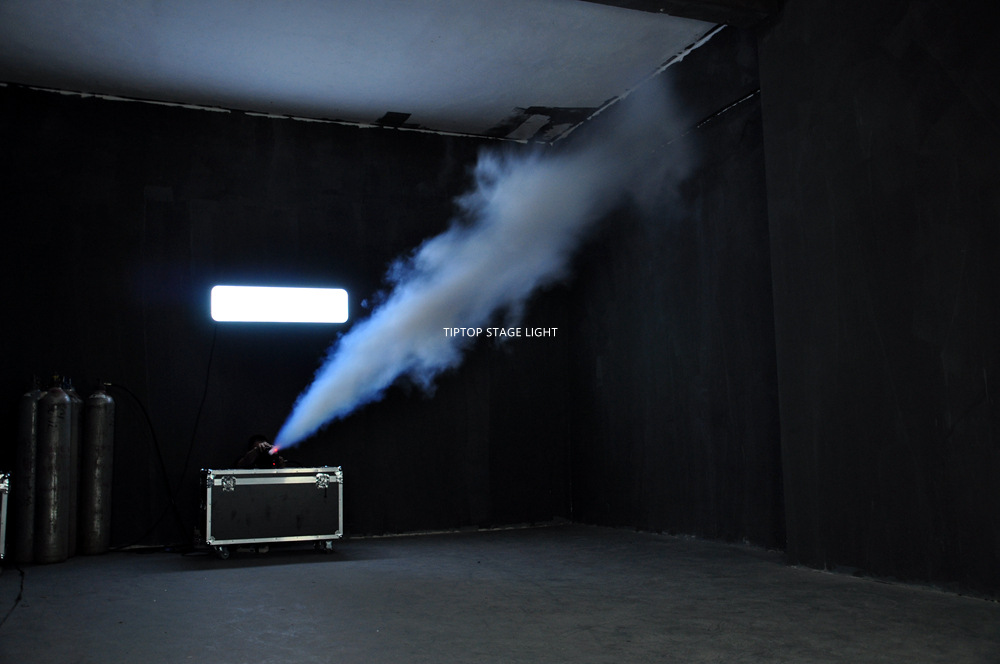

Spray height: 7-8 meters

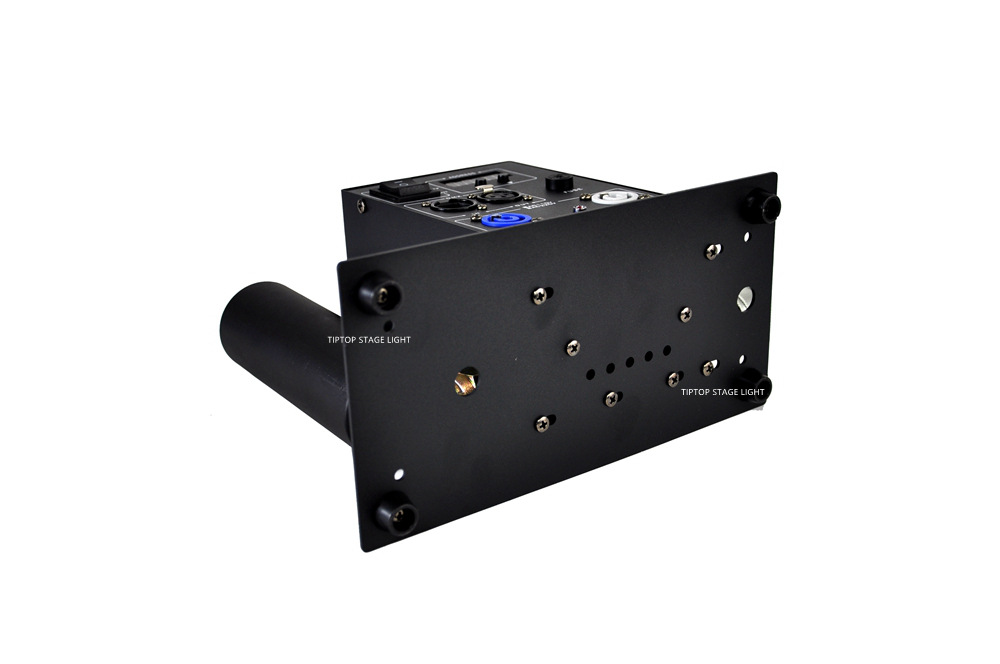

Feature: The spray Angle of the nozzle can be adjusted separately. The base is equipped with an installation light hook, allowing the machine to be installed on the truss.

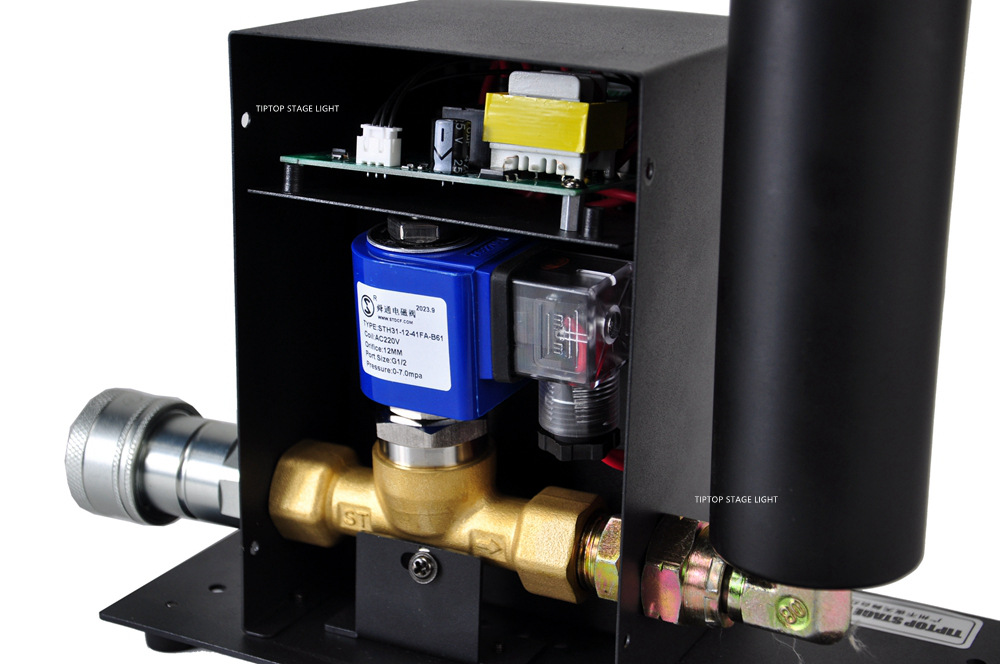

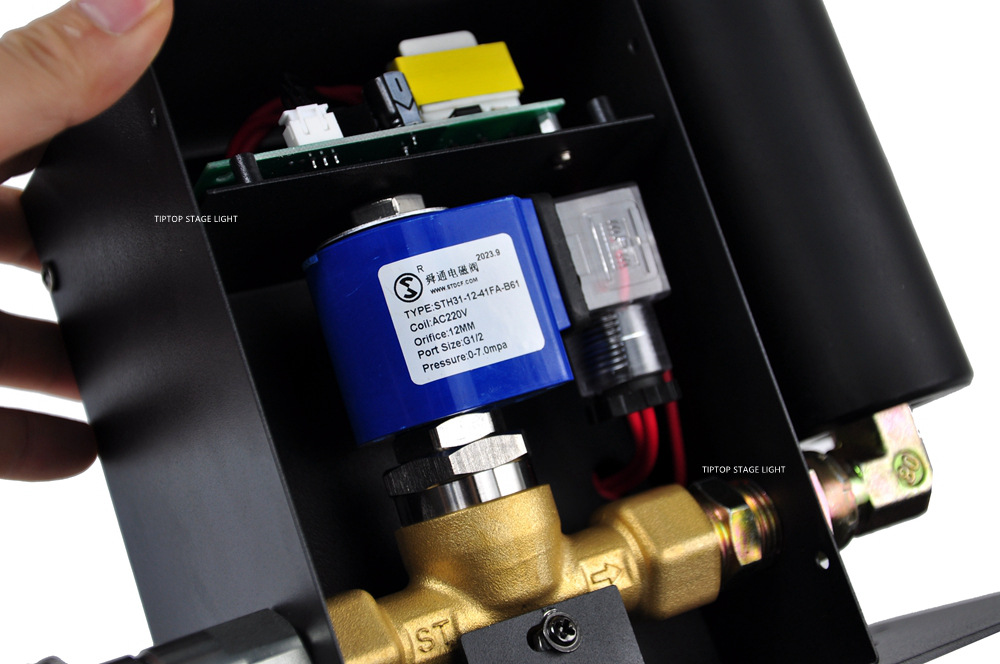

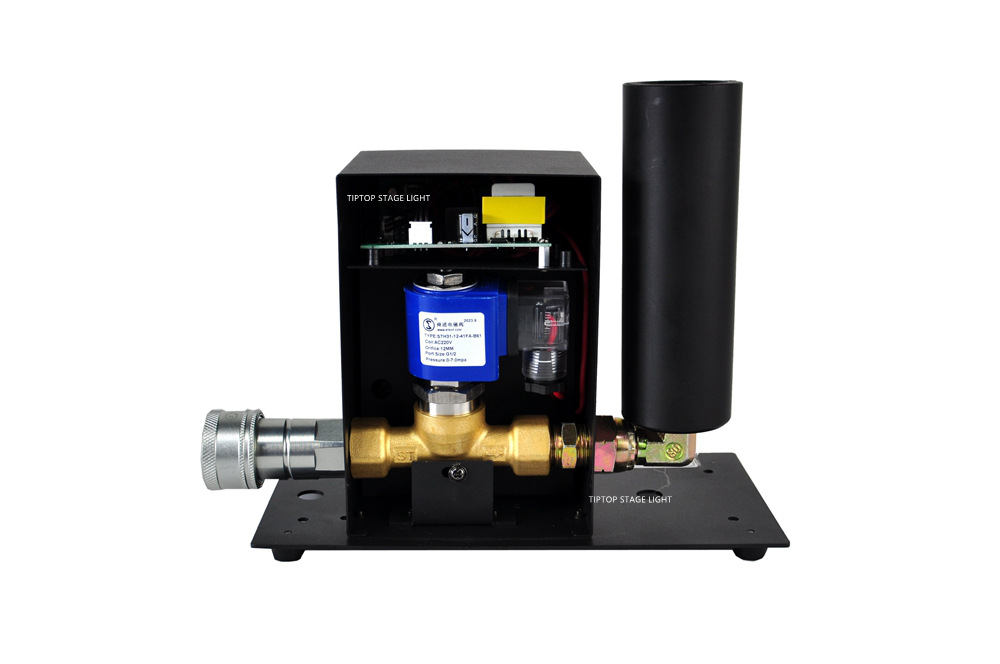

Air valve brand: High-quality high-pressure air valve, with built-in metal piston, not easy to get stuck or leak air

气管：6米高压气管，内置多层钢丝，不易鼓包和漏气 （其他尺寸气管可选）

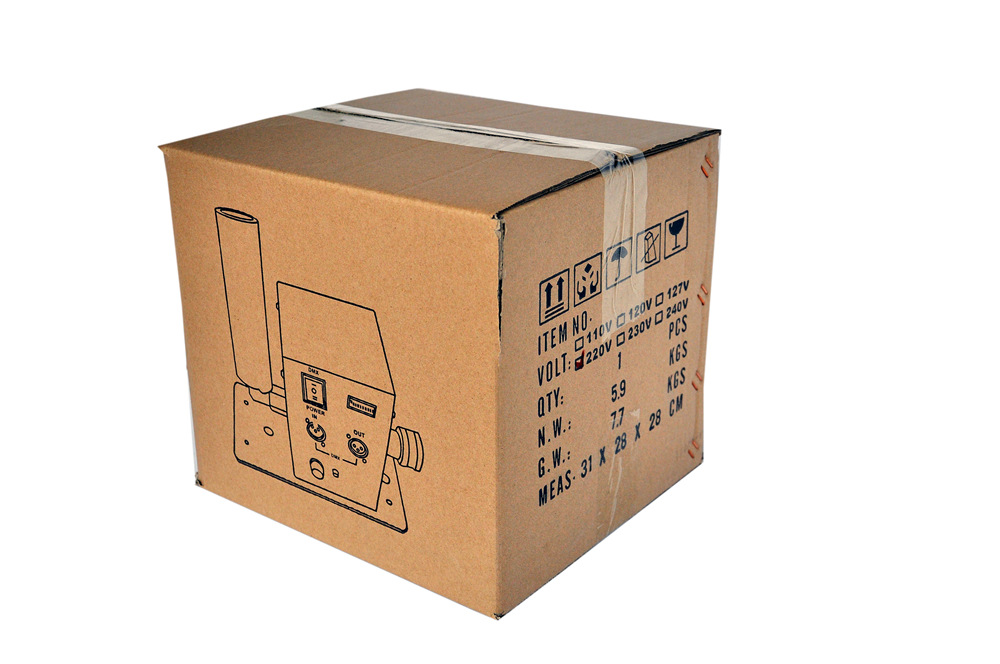

Packaging size: 32*30*28cm(1 unit/piece)

Net weight: 6kg

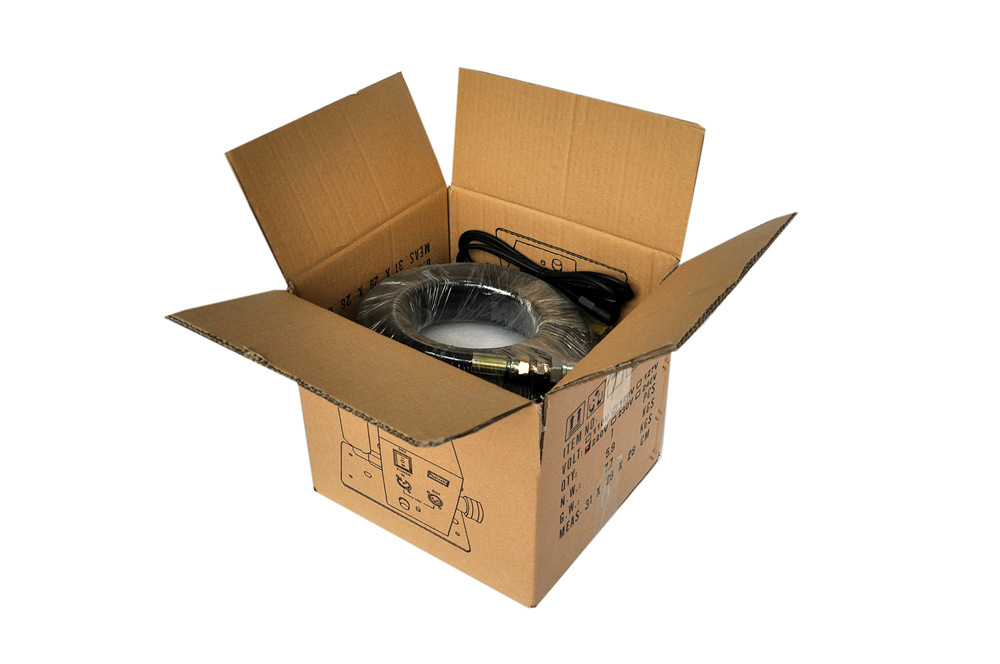

Standard packaging conditions (included per piece)

1 x air column machine

1 x Trachea

1 x Power cord

1 x signal line

1 x Remote Control

1 x Instruction Manual



It is recommended that the injection time be controlled within 1 to 3 seconds. Prolonged injection can easily cause the liquid carbon dioxide to freeze and clog the gas valve group. If the injection continues, the valve group is very prone to damage. Valve group damage caused by incorrect operation is not covered by the warranty. Please note.

The high-pressure air valve built into the air column machine can withstand the air pressure of the gas cylinder, eliminating the need to reconnect a pressure reducing valve.

The copper joint of the gas pipe can be directly connected to the domestic gas cylinder nozzle. If it is for export, an additional conversion copper joint needs to be added. Please note. If the product is for export, please contact our company and note the customer's country.

The air valve and power supply of the air column machine are of single voltage, either 110V or 220V. Please remember to pay attention to the local voltage before purchasing.

The standard length of the air tube is 6 meters. We also offer air tubes of other sizes for customers to choose from

The new air column machine has added a remote control function. If remote control is required, the machine must not be connected to signal lines or control consoles; otherwise, the machine will prioritize DMX control.





Product name: Single Pipe LCD Display CO2 jet machine

Mode: TP-T25

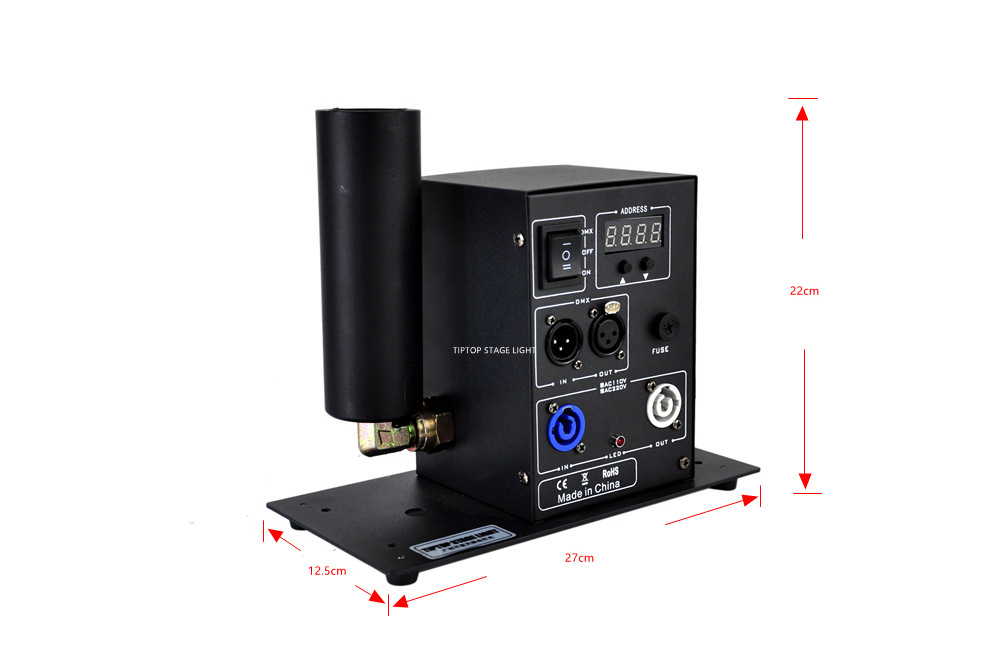

Height: 23cm
Length: 28cm
Width: 13cm
Gas input: liquid CO2 gas
Control way: DMX512+Manual (Power on/off)+Remote control
DMX channels: 1
Linkable: yes, via DMX
Voltage: AC100V / 220V
Power: 200W
Gas jet height: 6-8 meter
Nozzle materials: ABS
Co2 gas shot angle: adjustable 0-100 degree
Pressure rating: up to 2610psi (180bar)
Hose length: 6 meters with quick connector （other length gas hose is optional)
Product warranty time: 1 year
Carton box packing size: 32cm*30cm*30cm
Machine weight: 5kg
Carton box packing weight: 6kg

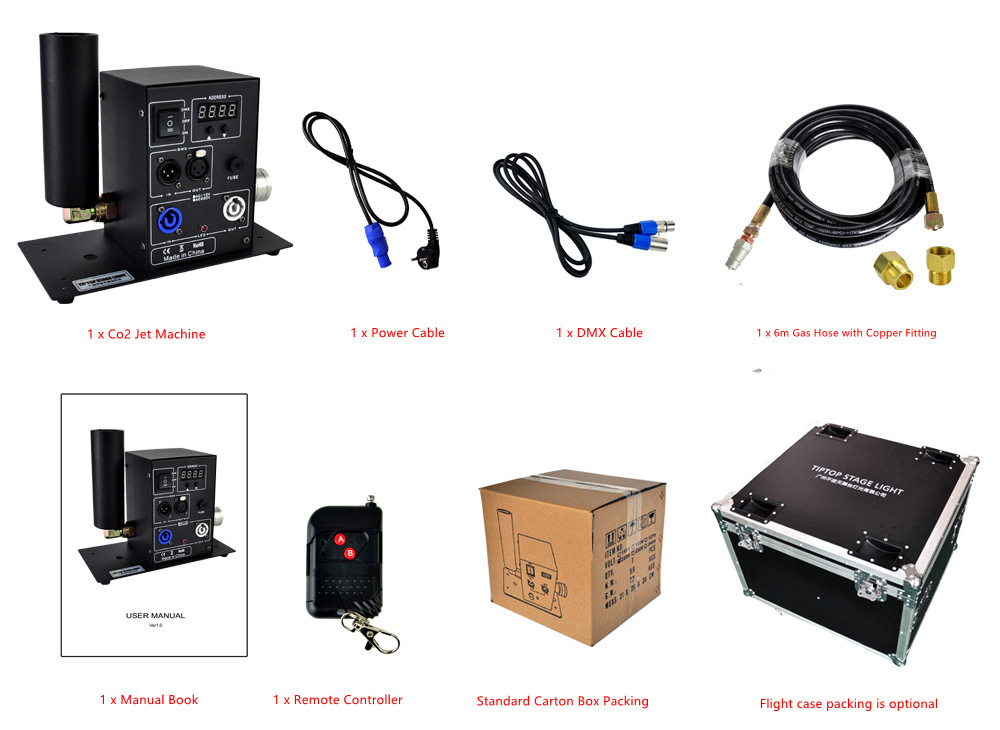

Packing list for each unit:
1 x co2 jet machine
1 x gas hose
1 x power cable
1 x DMX cable

1 x remote controller
1 x manual book



*standard gas hose is 6m long. we can offer other length gas hose to choose.



FAQ:
1: What kind of gas should I choose?
A: Liquid co2 gas.

2: Can I connect the machine to gas tank directly?
A: Yes. The new gas valve can support the high gas pressure.

3: Can I jet more than 5-10 seconds?
A: we suggest customer choose DMX mode and jet 1-3 seconds. Long time jet will damage the valve.

4: Can I choose longer gas hose?
A: the standard length is 6m. if you need longer or shorter gas hose please contact our sales manager.

5: Can I choose flight case packing?
A: the standard packing way is carton box. 2IN1/4IN1/6IN1 flight case is optional. If need please contact us.
